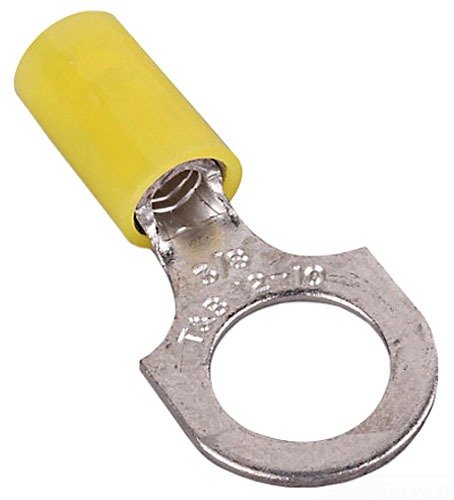

Stakon RC10-10 Ring Terminal, Standard, Nylon Insulated, 1-Inch Length by 0.37-Inch Width, Yellow, 50-Pack

Color: Yellow

Features:

• Self insulated with high dielectric strength nylon sleeves
• An inner bronze insulation grip sleeve lengthens the flexing radius of the conductor and eliminates conductor creep
• Wire range identification on the tongue of each terminal
• Constructed of electrolytic copper for high conductivity
• Yellow

PartNumber: RC10-10

Details: Description From the Manufacturer Ring Terminal; Standard; Nylon Insulated; 1-Inch Length; 0.37-Inch Width; 0.21-Inch Maximum Insulation; 0.04-Inch Stock Thickness; 12 AWG To 10 AWG Conductor Size; #10 Stud Size; 600-Volt Voltage Rating; Copper Material; Electro Tin Plated Finish; Yellow Color; 105 Degree C Temperature Rating; UL 486-A, CSA 22.2 Approval; RC Terminal Series; 50 Standard Package.

UPC: 786210804385

EAN: 0786210804385

Model: RC10-10

Binding: Tools & Home Improvement

Item Condition: New
