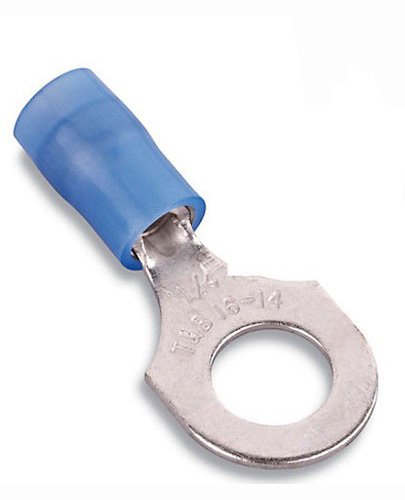

Stakon RB14-6 Ring Terminal, Standard, Nylon Insulated, 0.89-Inch Length by 0.31-Inch Width, Blue, 100-Pack

Color: Blue

Features:

• Self insulated with high dielectric strength nylon sleeves
• An inner bronze insulation grip sleeve lengthens the flexing radius of the conductor and eliminates conductor creep
• Wire range identification on the tongue of each terminal
• Constructed of electrolytic copper for high conductivity
• Blue

PartNumber: RB14-6

Details: From the Manufacturer Ring Terminal; Standard; Nylon Insulated; 0.89-Inch Length; 0.31-Inch Width; 0.162-Inch Maximum Insulation; 0.03-Inch Stock Thickness; 18 AWG To 14 AWG Conductor Size; #6 Stud Size; 600-Volt Voltage Rating; Copper Material; Electro Tin Plated Finish; Blue Color; 105 Degree C Temperature Rating; UL 486-A, CSA 22.2 Approval; RB Terminal Series; 100 Standard Package.

UPC: 786210804026

EAN: 0786210804026

Model: RB14-6

Binding: Tools & Home Improvement

Item Condition: New
