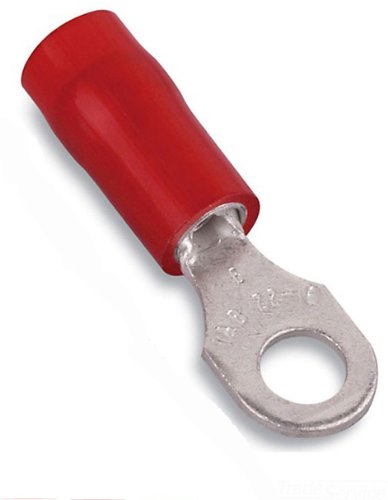

Stakon RA18-6 Ring Terminal, Standard, Nylon Insulated, 0.86-Inch Length by 0.26-Inch Width, Red, 100-Pack

Color: Red

Features:

• Self insulated with high dielectric strength nylon sleeves
• An inner bronze insulation grip sleeve lengthens the flexing radius of the conductor and eliminates conductor creep
• Wire range identification on the tongue of each terminal
• Constructed of electrolytic copper for high conductivity
• Red

PartNumber: RA18-6

Details: From the Manufacturer Ring Terminal; Standard; Nylon Insulated; 0.86-Inch Length; 0.26-Inch Width; 0.136-Inch Maximum Insulation; 0.03-Inch Stock Thickness; 22 AWG To 16 AWG Conductor Size; #6 Stud Size; 600-Volt Voltage Rating; Copper Material; Electro Tin Plated Finish; Red Color; 105 Degree C Temperature Rating; UL 486-A, CSA 22.2 Approval; RA Terminal Series; 100 Standard Package.

UPC: 786210803852

EAN: 0786210803852

Model: RA18-6

Binding: Tools & Home Improvement

Item Condition: New
