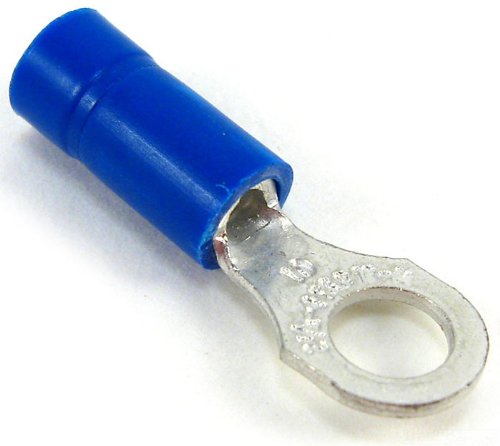

Stakon 14RB-10 Ring Terminal, Standard, Vinyl Insulated, 0.97-Inch Length by 0.31-Inch Width, Blue, 100-Pack

Color: Blue

Features:

• These terminals are self insulated with a PVC insulation sleeve of extra length to give protection and relieve bending stress at wires flex point
• Brazed seam barrel is serrated to obtain high pull out value
• Wire range identification on the tongue of each terminal
• Constructed of electrolytic copper for high conductivity
• Blue

PartNumber: 14RB-10

Details: From the Manufacturer Ring Terminal; Standard; Brazed Seam Serrated Barrel; Vinyl Insulated; 0.97-Inch Length; 0.31-Inch Width; 0.17-Inch Maximum Insulation; 0.03-Inch Stock Thickness; 18 AWG To 14 AWG Conductor Size; #10 Stud Size; 600-Volt Voltage Rating; Copper Material; Electro Tin Plated Finish; Blue Color; 105 Degree C Temperature Rating; UL 486-A, CSA 22.2 Approval; RB Terminal Series; 100 Standard Package.

UPC: 786210800691

EAN: 0786210800691

Model: 14RB-10

Binding: Tools & Home Improvement

Item Condition: New
