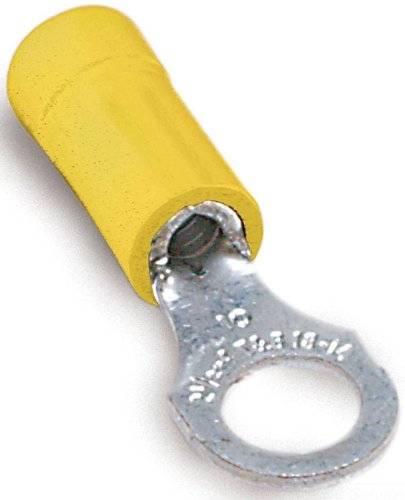

Stakon 10RC-14 Ring Terminal, Standard, Vinyl Insulated, 1.16-Inch Length by 0.5-Inch Width, Yellow, 50-Pack

Color: Yellow

Features:

• These terminals are self insulated with a PVC insulation sleeve of extra length to give protection and relieve bending stress at wires flex point
• Brazed seam barrel is serrated to obtain high pull out value
• Wire range identification on the tongue of each terminal
• Constructed of electrolytic copper for high conductivity
• Yellow

PartNumber: 10RC-14

Details: From the Manufacturer Ring Terminal; Standard; Brazed Seam Serrated Barrel; Vinyl Insulated; 1.16-Inch Length; 0.5-Inch Width; 0.21-Inch Maximum Insulation; 0.04-Inch Stock Thickness; 12 AWG To 10 AWG Conductor Size; 1/4-Inch Stud Size; 600-Volt Voltage Rating; Copper Material; Electro Tin Plated Finish; Yellow Color; 105 Degree C Temperature Rating; UL 486-A, CSA 22.2 Approval; RC Terminal Series; 50 Standard Package.

UPC: 786210800462

EAN: 0786210800462

Model: 10RC-14

Binding: Tools & Home Improvement

Item Note: NEW

Item Condition: New
