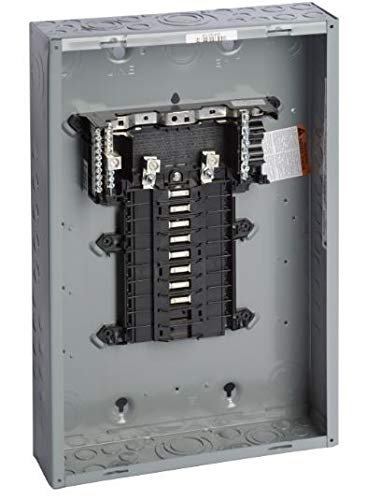

Square D QO116L125G Load Center, Lug, 125A, 120/240Vac, 1Ph

PartNumber: QO116L125G

Details: QO116L125G CONVERTIBLE MAIN LUG TYPE; 14.25 INCH W X 3.75 INCH D X 20.92 INCH H SIZE; 16 MAX. NUMBER OF CIRCUITS; 16 MAX. NUMBER OF SPACES; UL, NOM APPROVAL; 120/240 VAC VOLTAGE RATING; 65 KILOAMPERE INTERRUPTING RATING; 125 AMPERE CURRENT RATING; NEMA 1, INDOOR ENCLOSURE TYPE; 1 PHASE 3 WIRE CIRCUIT CONFIGURATION; TOP/BOTTOM FEED LOCATION; TIN PLATED COPPER BUS MATERIAL; QOM1 MAIN FRAME SIZE MAIN BREAKER TYPE; 7 ENCLOSURE SIZE DESIGNATION; 6 TO 2/0 AWG (ALUMINUM/COPPER) MAIN WIRE SIZE; QO[R] BRAND; INCLUDES GROUNDING BAR; QO MODEL

UPC: 785901847731

EAN: 0785901847731

Model: QO116L125G

Binding: Misc.

Item Condition: New
