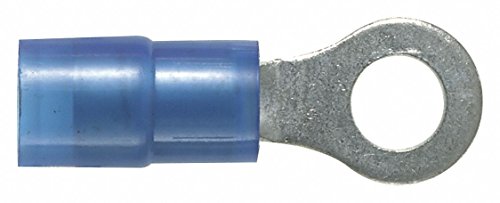

Ring Terminal, Blue Nylon, Grip Sleeved Seam, 18 to 14 AWG, 100 PK

PartNumber: PN14-8R-C

Details: This ring terminal features a tongue design to help ensure a secure connection in high-vibration applications. The metal insulation grip sleeve helps to crimp to wire insulation, providing protection to the crimp joint during high vibration applications. Internal barrel serrations also help to ensure good wire contact and maximum tensile strength. Item: Ring Terminal Insulation Type: Nylon Stud Size: #8 Wire Range: 18 to 14 AWG Insulation Color: Blue Seam: Grip Sleeved Max. Temp.: 221 Degrees F Max. Voltage: 600V Overall Length: 0.850" Connection Material: Copper Standards: UL486A-486B, CSA C22.2 No. 65, MS25036-153 (Class 1 and 2) Terminal Connection: Crimp Green Environmental Attribute: Does Not Contain PVC

UPC: 696333615815

EAN: 0696333615815

Model: PN14-8R-C

Binding: Misc.

Item Condition: New
