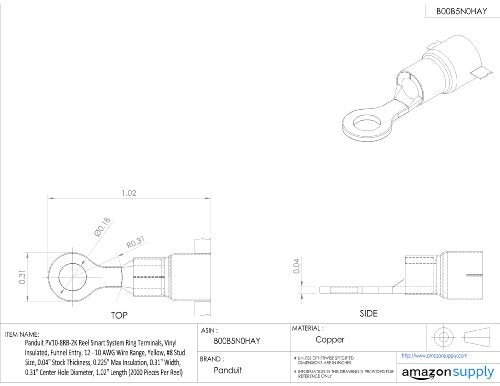

Panduit PV10-8RB-2K Reel Smart System Ring Terminals, Vinyl Insulated, Funnel Entry, 12 - 10 AWG Wire Range, Yellow, #8 Stud Size, 0.04" Stock Thickness, 0.225" Max Insulation, 0.31" Width, 0.17" Center Hole Diameter, 1.02" Length (2000 Pieces Per Reel)

Color: Yellow

Features:

• Funnel entry ring terminal reel for use with solid or stranded copper wire from #12 to #10 AWG (4 to 6 sq. mm) and #8 (M4) studs
• Tin-plated copper body with vinyl-insulated barrel for insulation and strain relief
• Maximum voltage rating of 600V
• Maximum temperature rating of 221 degrees F (105 degrees C)
• UL Listed and CSA certified for quality assurance, RoHS compliant for hazardous substance regulations

PartNumber: PV10-8RB-2K

Details: This Panduit PV10-8RB-2K vinyl-insulated funnel entry ring terminal reel is suitable for use with solid or stranded copper wire from #12 to #10 AWG (4 to 6 sq. mm) and #8 (M4) studs. It has a tin-plated copper body, a maximum voltage rating of 600V, and a maximum temperature rating of 221 degrees F (105 degrees C). Its barrel is insulated with yellow vinyl for electrical and thermal insulation, strain relief, and for matching with Panduit color-coded dies. It is Restriction of Hazardous Substances (RoHS) compliant for hazardous substance regulations and is Underwriters Laboratories (UL) Listed and Canadian Standards Association (CSA) certified for quality assurance. This vinyl-insulated funnel entry ring terminal reel is suitable for use with solid or stranded copper wire from American Wire Gauge (AWG) #12 to #10 (4 to 6 sq. mm) in industrial, automotive, and other high-vibration electrical applications.SpecificationsConnector typeRing terminal, insulated, funnel entry, reelPieces per reel2,000For use with solid and stranded copper wire#12 to #10 AWG (4 to 6 sq. mm)Stud size#8 (M4)Color codeYellowCompatible with Panduit crimping diesCD9-3B and CD-800-3Dimensions*1.02 x 0.31 inches/25.9 x 7.9 mm (L x W)Center hole diameter0.17" (4.3 mm)Clearance0.31" (7.9 mm)Wire strip length11/32" (8.7 mm)Insulation materialVinylMaximum wire insulation diameter0.23" (5.7 mm)Body materialTin-plated copperBody material thickness0.03" (0.8 mm)Maximum voltage rating600VMaximum temperature rating221 degrees F (105 degrees C)Flammability ratingUL 94V-0Standards metUL Listed, CSA certified, RoHS compliant *L is length, the horizontal distance from end to end; W is width, the horizontal distance from side to side. Panduit manufactures electrical and networking products. The company, founded in 1955, is headquartered in Tinley Park, Il.

UPC: 074983803606

EAN: 0074983803606

Model: PV10-8RB-2K

Binding: Misc.

Item Condition: New
