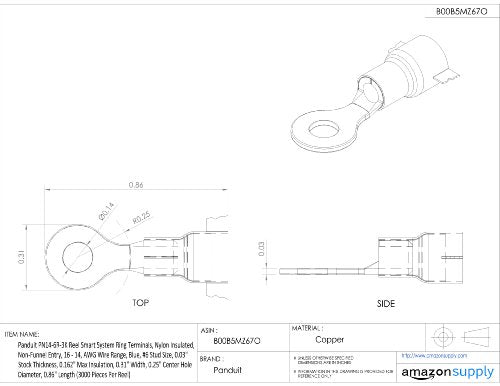

Panduit PN14-6R-3K Reel Smart System Ring Terminals, Nylon Insulated, Non-Funnel Entry, 16 - 14, AWG Wire Range, Blue, #6 Stud Size, 0.03" Stock Thickness, 0.162" Max Insulation, 0.31" Width, 0.15" Center Hole Diameter, 0.86" Length (3000 Pieces Per Reel)

Color: Blue

Features:

• Nylon-insulated ring terminal reel for use with solid or stranded copper wire from #16 to #14 AWG (1.5 to 2.5 sq. mm) and #6 (M3.5) studs
• Tin-plated copper body with tin-plated brass grip sleeve for secure attachment to conductors
• Maximum voltage rating of 600V
• Maximum temperature rating of 221 degrees F (105 degrees C)
• UL Listed and CSA certified for quality assurance, RoHS compliant for hazardous substance regulations, meets Military Standard MS25036-107 for Class 2 insulated terminals

PartNumber: PN14-6R-3K

Details: This Panduit PN14-6R-3K nylon-insulated ring terminal reel is suitable for use with solid or stranded copper wire from #16 to #14 AWG (1.5 to 2.5 sq. mm) and #6 (M3.5) studs. It has a tin-plated copper body, a maximum voltage rating of 600V, and a maximum temperature rating of 221 degrees F (105 degrees C). Its tin-plated brass sleeve provides a secure attachment to conductors and is insulated with blue nylon for matching with Panduit color-coded dies. It is Restriction of Hazardous Substances (RoHS) compliant for hazardous substance regulations, Underwriters Laboratories (UL) Listed and Canadian Standards Association (CSA) certified for quality assurance, and meets Military Standard MS25036-107 for Class 2 insulated terminals. This nylon-insulated ring terminal reel is suitable for use with solid or stranded copper wire from American Wire Gauge (AWG) #16 to #14 (1.5 to 2.5 sq. mm) in industrial, automotive, and other high-vibration electrical applications.SpecificationsConnector typeRing terminal, insulated grip sleeve, reelPieces per reel3,000For use with solid and stranded copper wire#16 to #14 AWG (1.5 to 2.5 sq. mm)Stud size#6 (M3.5)Color codeBlueCompatible with Panduit crimping diesCD9-2A and CD-800-2Dimensions*0.86 x 0.31 inches/21.8 x 7.9 mm (L x W)Center hole diameter0.15" (3.8 mm)Clearance0.25" (6.4 mm)Wire strip length1/4" (6.4 mm)Sleeve materialTin-plated brassInsulation materialNylonMaximum wire insulation diameter0.16" (4.1 mm)Body materialTin-plated copperBody material thickness0.03" (0.8 mm)Maximum voltage rating600VMaximum temperature rating221 degrees F (105 degrees C)Flammability ratingUL 94V-2/HBStandards metUL Listed, CSA certified, RoHS compliant, meets Military Standard MS25036-107 for Class 2 insulated terminals*L is length, the horizontal distance from end to end; W is width, the horizontal distance from side to side.Panduit manufactures electrical and networking products. The company, founded in 1955, is headquartered in Tinley Park, Il.

UPC: 074983806249

EAN: 0074983806249

Model: PN14-6R-3K

Binding: Misc.

Item Condition: New
