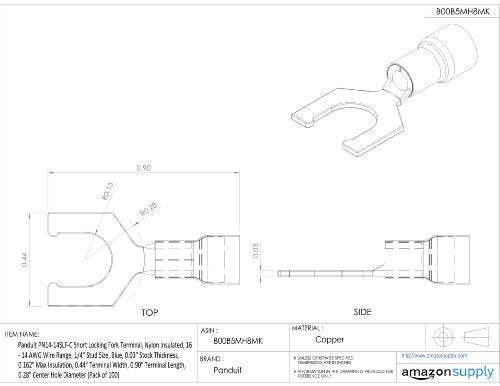

Panduit PN14-14SLF-C Short Locking Fork Terminal, Nylon Insulated, 16 - 14 AWG Wire Range, 1/4" Stud Size, Blue, 0.03" Stock Thickness, 0.162" Max Insulation, 0.44" Terminal Width, 0.90" Terminal Length, 0.28" Center Hole Diameter (Pack of 100)

Color: Blue

Features:

• Locks in place for a secure connection in limited spaces
• Fork design provides for fast and easy installation, without the need to remove fastener
• Metal insulation grip sleeve crimps to wire insulation, providing protection to the crimp joint during high vibration applications
• Internal barrel serrations assure good wire contact and maximum tensile strength
• UL Flammability UL 94V-2/HB, maximum insulation temperature 221°F (105°C)

PartNumber: PN14-14SLF-C

Details: Panduit Pan-Term Terminals are designed and manufactured for fast assembly, and reliable performance. Panduit provides an extensive line of tooling designed specifically to provide optimum performance. As the demand for loose piece terminals increases, it becomes essential to provide a complete system for termination products.

UPC: 074983809943

EAN: 0074983809943

Model: PN14-14SLF-C

Binding: Misc.

Item Condition: New
