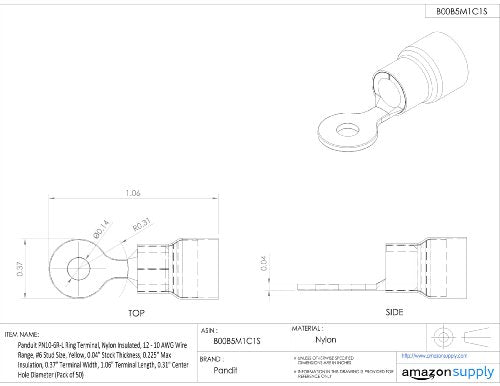

Panduit PN10-6R-L Ring Terminal, Nylon Insulated, 12 - 10 AWG Wire Range, #6 Stud Size, Yellow, 0.04" Stock Thickness, 0.225" Max Insulation, 0.37" Terminal Width, 1.06" Terminal Length, 0.15" Center Hole Diameter (Pack of 50)

Color: Yellow

Features:

• Ring terminal with insulated barrel and grip sleeve for use with solid or stranded copper wire from #12 to #10 AWG (4 to 6 sq. mm) and #6 (M3.5) studs
• Tin-plated copper body with tin-plated brass grip sleeve for secure attachment to conductors
• Maximum voltage rating of 600V
• Maximum temperature rating of 221 degrees F (105 degrees C)
• UL Listed and CSA certified for quality assurance, RoHS compliant for hazardous substance regulations, meets Military Standard MS25036-111 for Class 1 and Class 2 insulated terminals

PartNumber: PN10-6R-L

Release Date: 25-11-2017

Details: This Panduit PN10-6R-L ring terminal with nylon-insulated barrel and grip sleeve is suitable for use with solid or stranded copper wire from #12 to #10 AWG (4 to 6 sq. mm) and #6 (M3.5) studs. It has a tin-plated copper body, a maximum voltage rating of 600V, and a maximum temperature rating of 221 degrees F (105 degrees C). Its tin-plated brass sleeve provides a secure attachment to conductors and is insulated with yellow nylon for matching with Panduit color-coded dies. It is Restriction of Hazardous Substances (RoHS) compliant for hazardous substance regulations, Underwriters Laboratories (UL) Listed and Canadian Standards Association (CSA) certified for quality assurance, and meets Military Standard MS25036-111 for Class 1 and Class 2 insulated terminals. This ring terminal with nylon-insulated barrel and grip sleeve is suitable for use with solid or stranded copper wire from American Wire Gauge (AWG) #12 to #10 (4 to 6 sq. mm) in industrial, automotive, and other high-vibration electrical applications. SpecificationsConnector typeRing terminal, insulated grip sleeveFor use with solid or stranded copper wire#12 to #10 AWG (4 to 6 sq. mm)Stud size#6 (M3.5)Panduit color codeYellowCompatible with Panduit crimping toolsCT-100A, CT-600-A, CT-1550, CT-1551, CT-2500Dimensions*1.06 x 0.37 inches/26.9 x 9.4 mm (L x W)Center hole diameter0.15" (3.8 mm)Clearance0.31" (7.9 mm)Wire strip length9/32" (7.1 mm)Sleeve materialTin-plated brassInsulation materialNylonMaximum wire insulation diameter0.225" (5.72 mm)Body materialTin-plated copperBody material thickness0.04" (1 mm)Maximum voltage rating600VMaximum temperature rating221 degrees F (105 degrees C)Flammability ratingUL 94V-2/HBStandards metUL Listed, CSA certified, RoHS compliant, meets Military Standard MS25036-111 for Class 1 and Class 2 insulated terminals *L is length, the horizontal distance from end to end; W is width, the horizontal distance from side to side. Panduit manufactures electrical and networking products. The company, founded in 1955, is headquartered in Tinley Park, Il.

EAN: 7436828723471

Model: PN10-6R-L

Binding: Misc.

Item Condition: New
