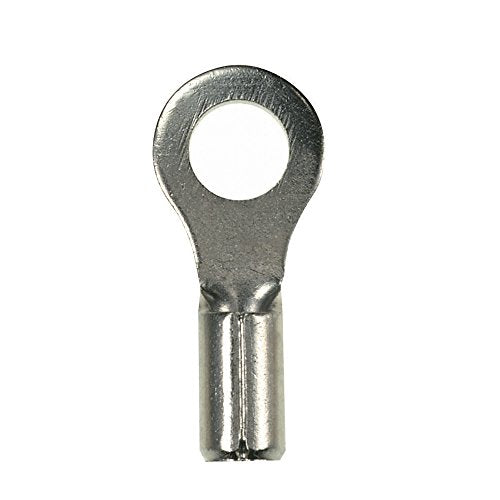

Panduit P18-8RHT6-C Ring Terminal, High Temperature, Non-Insulated, 22 - 18 AWG, #8 Stud Size (100-Pack)

Features:

• Ring tongue design assures a secure connection in high vibration applications
• Nickel plated copper for temperatures up to 650°F (343°C)
• Internal barrel serrations assure good wire contact and maximum tensile strength
• Brazed seam protects terminal barrel from splitting during the crimp process
• Barrel of terminal internally beveled to provide quick and easy wire insertion

PartNumber: P18-8RHT6-C

Details: This Panduit P18-8RHT6-C ring terminal is suitable for use with solid or stranded copper wire from #22 to #16 AWG (0.5 to 1.5 sq. mm) and #8 (M4) studs. It has a nickel-plated copper body, a maximum voltage rating of 2,000V, and a maximum temperature rating of 650 degrees F (343 degrees C). This terminal has internal barrel serrations for secure conductor contact and a brazed seam for protection of the barrel from splitting during the crimping process. It is Restriction of Hazardous Substances (RoHS) compliant for hazardous substance regulations. This ring terminal is suitable for use with solid or stranded copper wire from American Wire Gauge (AWG) #22 to #16 (0.5 to 1.5 sq. mm) in industrial, automotive, and other high-vibration, high-temperature electrical applications. SpecificationsConnector typeRing terminal, non-insulated, high temperatureFor use with solid or stranded copper wire#22 to #16 AWG (0.5 to 1.5 sq. mm)Stud size#8 (M4)Compatible with Panduit crimping toolsCT-100A, CT-200, CT-600-A, CT-1570, CT-2500Dimensions*0.71 x 0.31 inches/18 x 7.9 mm (L x W)Center hole diameter0.17" (4.3 mm)Clearance0.25" (6.4 mm)Wire strip length9/32" (7.1 mm)Body materialNickel-plated copperBody material thickness0.03" (0.8 mm)Maximum voltage rating2,000VMaximum temperature rating650 degrees F (343 degrees C)Standards metRoHS compliant *L is length, the horizontal distance from end to end; W is width, the horizontal distance from side to side. Panduit manufactures electrical and networking products. The company, founded in 1955, is headquartered in Tinley Park, Il.

UPC: 074983805365

EAN: 0074983805365

Model: P18-8RHT6-C

Binding: Misc.

Item Note: FACTORY NEW, MFR C-C AVAIL

Item Condition: New
