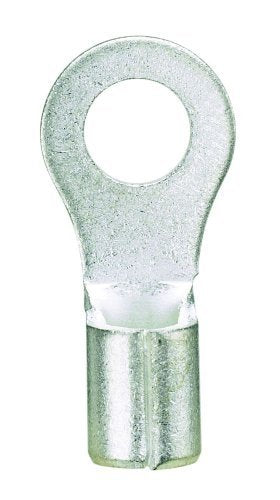

Panduit P10-10R-L Ring Terminal, Non-Insulated, 14 - 10 AWG Wire Range, #10 Stud Size, 0.04 Stock Thickness, 0.38 Terminal Width, 0.81 Terminal Length, 0.2 Center Hole Diameter (Pack of 50) by Panduit

PartNumber: 4678703

Details: While you're shopping for wire terminals, round out your parts inventory with our wire connectors and splice connector kits. Here is some additional information about this Ring Terminal : WIRE RANGE: 14 to 10 AWG, INSULATION TYPE: Bare, INSULATION COLOR: Bare ZORO #: G0059836 MFR #: P10-10R-L Insulation Color: Bare Terminal Connection: Crimp Connection Type: Crimp Insulation Type: Bare Stud Size: #10 Tongue Width - Wire Connector: 0.38" Seam: Brazed Max. Voltage: 2000V Green Environmental Attribute: Does Not Contain PVC Max. Temp.: 302 Degrees F Overall Length: 0.810" Connection Material: Copper Wire Range: 14 to 10 AWG Item: Ring Terminal Standards: UL486A-486B, CSA C22.2 No. 65, MS20659-105 Country of Origin (subject to change): Mexico

Model: P10 10R L

Binding: Misc.

Item Condition: New
