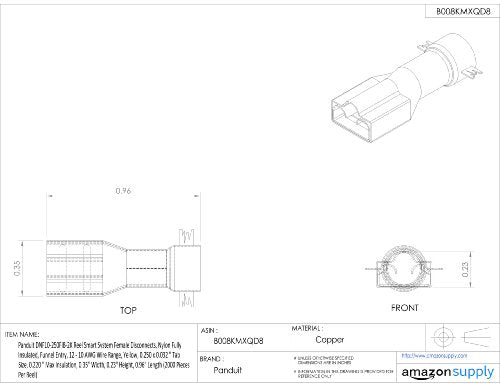

Panduit DNF10-250FIB-2K Reel Smart System Female Disconnects, Nylon Fully Insulated, Funnel Entry, 12 - 10 AWG Wire Range, Yellow, 0.250 x 0.032 " Tab Size, 0.220 " Max Insulation, 0.35" Width, 0.23" Height, 0.96" Length (2000 Pieces Per Reel)

Color: Yellow

Features:

• Fully insulated funnel entry female disconnect terminal reel for use with stranded copper wire from #12 to #10 AWG (4 to 6 sq. mm) and 0.25" tabs
• Tin-plated brass body with full nylon insulation for prevention of electrical shorts
• Maximum voltage rating of 600V
• Maximum temperature rating of 221 degrees F (105 degrees C)
• UL Listed and CSA certified for quality assurance, RoHS compliant for hazardous substance regulations

PartNumber: DNF10-250FIB-2K

Release Date: 09-10-2018

Details: This Panduit DNF10-250FIB-2K fully insulated funnel entry female disconnect terminal reel is suitable for use with stranded copper wire from #12 to #10 AWG (4 to 6 sq. mm) and tabs 0.25" (6.3 mm) wide and 0.032" (0.8 mm) thick. It has a tin-plated brass body, a maximum voltage rating of 600V, and a maximum temperature rating of 221 degrees F (105 degrees C). The terminal has an internal wire stop for ensuring the proper insertion depth of stripped conductors and is fully insulated with yellow nylon for prevention of electrical shorts and for matching with Panduit color-coded dies. It is Restriction of Hazardous Substances (RoHS) compliant for hazardous substance regulations and is Underwriters Laboratories (UL) Listed and Canadian Standards Association (CSA) certified for quality assurance. This fully insulated funnel entry female disconnect terminal reel is suitable for use with stranded copper wire from American Wire Gauge (AWG) #12 to #10 (4 to 6 sq. mm) in industrial, automotive, and other electrical applications.SpecificationsConnector typeDisconnect terminal, female, full insulation, funnel entry, reelPieces per reel2,000For use with stranded copper wire#12 to #10 AWG (4 to 6 sq. mm)For use with tabs0.25" (6.3 mm) wide, 0.032" (0.8 mm) thickColor codeYellowCompatible with Panduit crimping diesCD9-13B and CD-800-13Dimensions*0.96 x 0.35 x 0.23 inches/24.4 x 8.9 x 5.8 mm (L x W x H)Maximum wire insulation diameter0.22" (5.6 mm)Wire strip length3/8" (9.5 mm)Insulation materialNylonBody materialTin-plated brassMaximum voltage rating600VMaximum temperature rating221 degrees F (105 degrees C)Flammability ratingUL 94V-2/HBStandards metUL Listed, CSA certified, RoHS compliant * L is length, the horizontal distance from end to end; W is width, the horizontal distance from side to side; H is height, the vertical distance from bottom to top. Panduit manufactures electrical and networking products. The company, founded in 1955, is headquartered in Tinley Park, Il.

UPC: 074983348398

EAN: 0074983348398

Model: DNF10-250FIB-2K

Binding: Misc.

Item Condition: New
