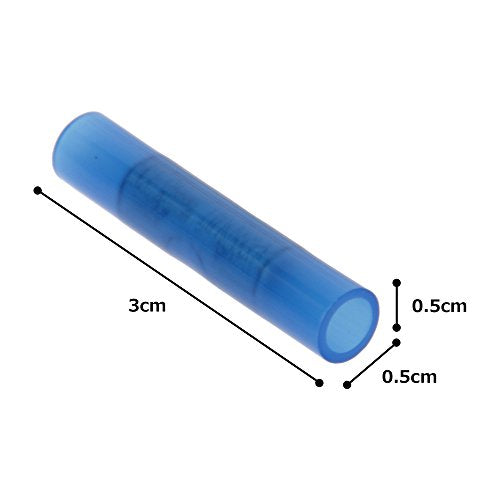

Panduit Butt Splice, Nylon Insulated

Features:

• Nylon-insulated butt splice connector for repairing or extending solid or stranded copper wires from #26 to #22 AWG (0.14 to 0.5 sq. mm)
• Tin-plated copper body with nylon housing for electrical and thermal insulation
• Maximum voltage rating of 600V
• Maximum temperature rating of 221 degrees F (105 degrees C)
• RoHS compliant for hazardous substance regulations

Details: This Panduit BSN22-C nylon-insulated butt splice connector is suitable for repairing or extending solid or stranded copper wires from #26 to #22 AWG (0.14 to 0.5 sq. mm). It has a tin-plated copper body with a nylon housing for electrical and thermal insulation, a maximum voltage rating of 600V, and a maximum temperature rating of 221 degrees F (105 degrees C). This connector has a brazed seam for protecting the barrel from splitting during the crimping process, an internal wire stop for ensuring the proper insertion depth of stripped conductors, and has a barrel color coded in yellow to match Panduit color-coded dies. It is Restriction of Hazardous Substances (RoHS) compliant for hazardous substance regulations. This vinyl-insulated butt splice connector is suitable for use with solid and stranded copper wires from American Wire Gauge (AWG) #26 to #22 (0.14 to 0.5 sq. mm) in a wide range of industrial, automotive, and other electrical applications. SpecificationsConnector typeButt splice, insulatedFor use with solid and stranded copper wire#26 to #22 AWG (0.14 to 0.5 sq. mm)Color codeYellowCompatible with Panduit crimping toolsCT-1525 and CT-2500Length0.79" (20.1 mm)Maximum wire insulation diameter0.08" (2 mm)Body materialTin-plated copperBody material thickness0.02"Insulation materialNylonMaximum voltage rating600VMaximum temperature rating221 degrees F (105 degrees C)Flammability ratingUL 94V-2/HBStandards metRoHS compliant Panduit manufactures electrical and networking products. The company, founded in 1955, is headquartered in Tinley Park, Il.
