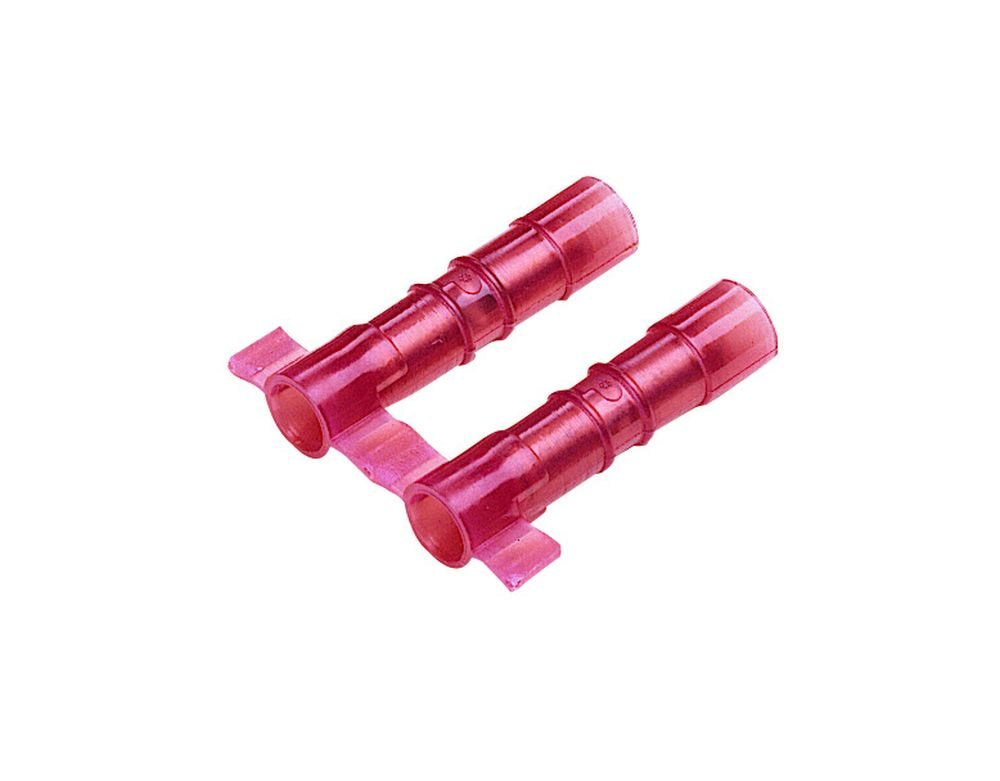

Panduit BSN18-3K Reel Smart System Butt Splices, Nylon Insulated, 22 - 16 AWG Wire Range, Red, 0.15" Max Insulation, 0.95" Overall Length (3000 Pieces Per Reel)

Color: Red

Features:

• Nylon-insulated butt splice connector reel for repairing or extending solid or stranded copper wire from #22 to #16 AWG (0.5 to 1.5 sq. mm)
• Tin-plated copper body with nylon housing for electrical and thermal insulation
• Maximum voltage rating of 600V
• Maximum temperature rating of 257 degrees F (125 degrees C)
• UL Listed and CSA certified for quality assurance, RoHS compliant for hazardous substance regulations

PartNumber: BSN18-3K

Details: This Panduit BSN18-3K nylon-insulated butt splice connector reel is suitable for repairing or extending solid or stranded copper wire from #22 to #16 AWG (0.5 to 1.5 sq. mm). It has a tin-plated copper body with a nylon housing for electrical and thermal insulation, a maximum voltage rating of 600V, and a maximum temperature rating of 257 degrees F (125 degrees C). This connector has a brazed seam for protecting the barrel from splitting during the crimping process, an internal wire stop for ensuring the proper insertion depth of stripped conductors, and has a barrel color coded in red to match Panduit color-coded dies. It is Restriction of Hazardous Substances (RoHS) compliant for hazardous substance regulations and is Underwriters Laboratories (UL) Listed and Canadian Standards Association (CSA) certified for quality assurance. This nylon-insulated butt splice connector reel is suitable for use with solid and stranded copper wire from American Wire Gauge (AWG) #22 to #16 (0.5 to 1.5 sq. mm) in a wide range of industrial, automotive, and other electrical applications.SpecificationsConnector typeButt splice, insulated, reelPieces per reel3,000For use with solid and stranded copper wire#22 to #16 AWG (0.5 to 1.5 sq. mm)Color codeRedCompatible with Panduit crimping diesCD9-1A and CD-800-1Length0.95" (24.1 mm)Maximum wire insulation diameter0.15" (3.8 mm)Body materialTin-plated copperInsulation materialNylonMaximum voltage rating600VMaximum temperature rating257 degrees F (125 degrees C)Flammability ratingUL 94V-2/HBStandards metUL Listed, CSA certified, RoHS compliantPanduit manufactures electrical and networking products. The company, founded in 1955, is headquartered in Tinley Park, Il.

UPC: 074983830169

EAN: 0074983830169

Model: BSN18-3K

Item Condition: New
