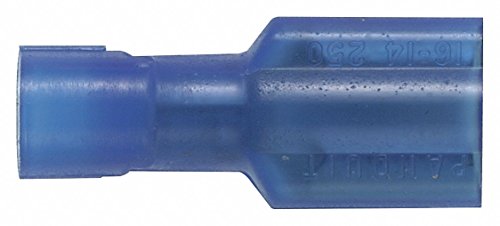

PANDUIT Blue Female Disconnect, Nylon Insulation Type, 16 to 14 AWG Wire Range - pkg. of 100

PartNumber: DNF14-250FIB-C

Details: Disconnect does not require tools to be inserted or removed from the male tab. The disconnect protects itself from electrical shorts with its insulated design. Item: Female Disconnect Insulation: Full Insulation Type: Nylon Insulation Color: Blue Wire Range: 16 to 14 AWG Tab Size: 0.032" x 0.250" Barrel Inside Dia.: 0.090" Max. Temp.: 221 Degrees F Max. Voltage: 600V Overall Length: 0.840" Seam: Butted Connection Material: Tin-Plated Brass Standards: UL 310, CSA22.2 No. 153, American Bureau of Shipping (ABS), RoHS Compliant Connection Type: Crimp

UPC: 696333626989

EAN: 0696333626989

Model: DNF14-250FIB-C

Item Condition: New
