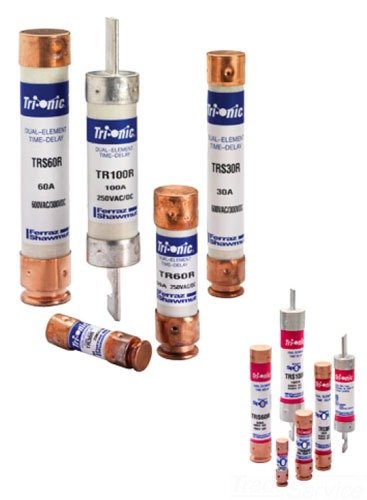

Mersen TRS-R Tri-Onic Time-Delay/Class RK5 Fuse, 600VAC/600VDC, 200kA AC/100kA DC, 400 Ampere, 2-9/16" Diameter x 11-5/8" Length

Features:

• Optional solid state SmartSpot blown fuse indicator
• Time-delay for motor start-ups and transformer inrush currents without nuisance opening
• Current-limiting for low peak let-thru current
• Rejection-style design prevents replacement errors
• Easy-to-read label for quick brand recognition and replacement
• Class Rk5
• Time Delay Characteristics
• 600 Vac/Vdc
• 400 Ampere
• Interrupting Rating 200 Kiloampere (Ac), 100 Kiloampere (Dc)

PartNumber: TRS400R

Details: Product Description Mersen Tri-Onic time-delay/class RK5 fuse. Industry's most popular fuse for motor circuit protection with advanced material technology added to the existing product, the Tri-Onic TRS current-limiting time-delay fuses are engineered for overcurrent protection of motors and transformers, service entrance equipment, feeder and branch circuits. Tri- Onic fuse proven time-delay characteristic safely handles harmless starting currents and inrush currents associated with today's motors and transformers. Features: metal embossed date and catalog number for traceability and lasting identification, fiberglass body provides dimensional stability in harsh industrial settings, high-grade silica filler ensures fast arc quenching and high current limitation. Applications: motor circuits, mains, feeders, branch circuits, transformers, service entrance equipment, general-purpose equipment. Approvals: UL listed to standard 248-12 file E2137. CSA certified to standard C22.2 no. 248.12 and DC listed to UL standard 248. 600VAC/600VDC voltage rating. 200kA AC/100kA DC interrupt rating. 400 ampere current rating. Measures 2-9/16-inches diameter by 11-5/8-inches length. From the Manufacturer Mersen TRS400R 600V 400A 11 5/8X2 9/16 T, UL Power Fuse, Class Rk5, Time Delay Characteristics, 600 Vac/Vdc, 400 Ampere, Interrupting Rating 200 Kiloampere (Ac), 100 Kiloampere (Dc), Blade Terminal, Diameter 2-9/16 Inch, Length 11-5/8 Inch, Approval Ul 198L, Ul 248-12, Csa C22.2, Tri-Onic[R] Brand, Trs Model

UPC: 782001749255

EAN: 0782001749255

Model: TRS400R

Binding: Tools & Home Improvement

Item Condition: New
