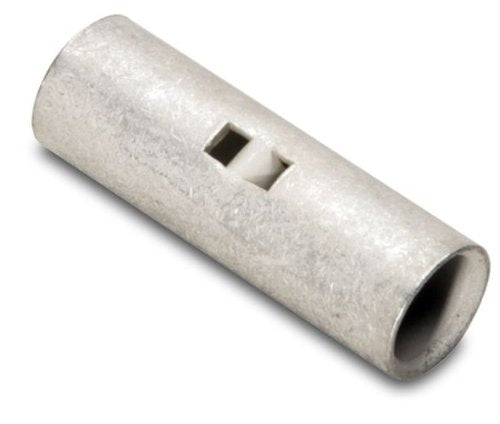

Burndy YSV26-L Box Hylink Uninsulated Butt Splice, 2/0 Aircraft-an" Comm'l-AWG Str. and Sol. Wire Range, 1.78" Length

Features:

• A high quality design with no seams to split
• Provides maximum conductivity, low resistance and ductility for excellent crimp forming properties
• Provides durable long lasting resistance to corrosion
• Provides proper depth of wire insertion
• Provides easy wire size identification

PartNumber: YSV26-L BOX

Details: Hylink type YSV-L seamless splice connector is used to splice Type AN aircraft cables plus commercial stranded and solid AWG conductors. Suitable for aircraft, light duty industrial and general purpose applications. Manufactured from seamless tubing. A high quality design with no seams to split. Electrolytic copper. Provides maximum conductivity, low resistance and ductility for excellent crimp forming properties. Electro-tin plated. Provides durable long lasting resistance to corrosion. Positive center wire stops. Provides proper depth of wire insertion. Marked with wire size. Provides easy wire size identification. The Hylink splice connectors have inspection holes. Provides easy visual inspection for proper wire insertion. Installation tooling: Non-Ratchet: MY28, MY29-3, MY29-11; Ratchet: Y8MRB-1, MR8-9Q, Y1MRTC.

UPC: 781810534953

EAN: 0781810534953

Model: YSV26-L BOX

Binding: Misc.

Item Condition: New
