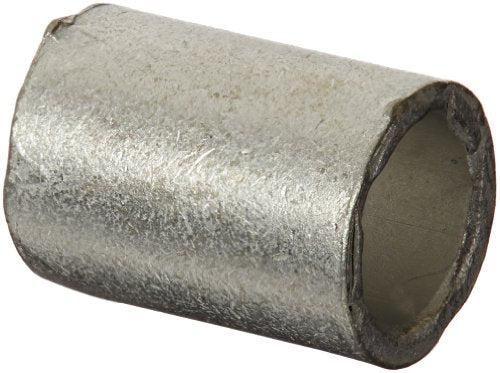

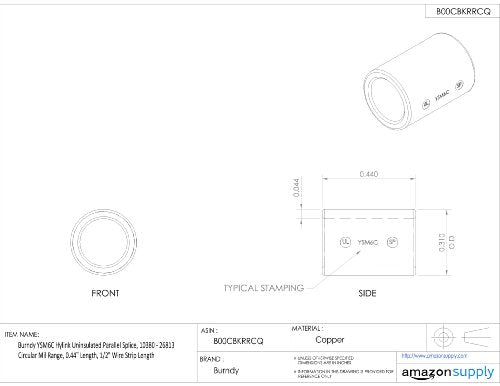

Burndy YSM6C Hylink Uninsulated Parallel Splice, 10380-26813 Circular Mil Range, 0.44" Length, 1/2" Wire Strip Length

Features:

• A high quality design with no seams to split
• Provides maximum conductivity, low resistance and ductility for excellent crimp forming properties
• Provides durable long lasting resistance to corrosion
• Provides proper depth of wire insertion
• Provides easy wire size identification

PartNumber: YSM6C

Details: Hylink type YSM seamless parallel splice connector permits wires to be laid parallel inside the connector and spliced together with BURNDY’s compression HYTOOL. Each YSM connector accommodates a wide combination of round, square, and rectangular copper conductors that have a total combined circular mil area listed in the table below. The conductors to be spliced must physically fit within title splice without being forced. Manufactured from seamless tubing. A high quality design with no seams to split. Electrolytic copper. Provides maximum conductivity, low resistance and ductility for excellent crimp forming properties. Electro-tin plated. Provides durable long lasting resistance to corrosion. Positive center wire stops. Provides proper depth of wire insertion. Marked with wire size. Provides easy wire size identification. The Hylink splice connectors have inspection holes. Provides easy visual inspection for proper wire insertion.

UPC: 781810805787

EAN: 0781810805787

Model: YSM6C

Binding: Misc.

Item Condition: New
