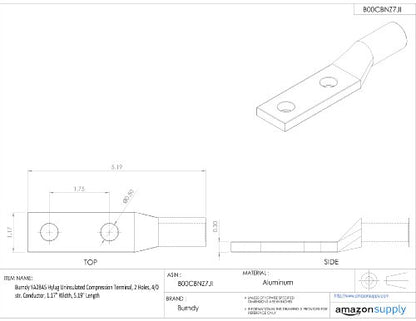

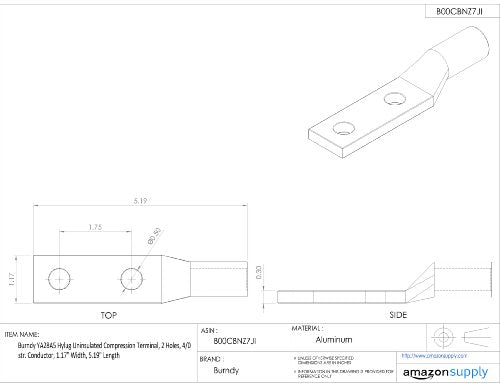

Burndy YA28A5 Hylug Uninsulated Compression Terminal, 2 Holes, 4/0 str. Conductor, 1.17" Width, 5.19" Length

Features:

• Manufactured from high conductivity, wrought aluminum with heavy duty wall thickness
• Electro-tin plated, provides durable long lasting corrosion resistance
• Internally beveled barrel, provides easy cable insertion
• Meets UL486B 90 degree C requirements provides a quality electrical dual connection
• Connector is clearly marked with wire size, die index, color-code and the proper number and location of crimps

PartNumber: YA28A5

Details: Type YA-A aluminum tin-plated compression Hylug terminals are dual-rated and designed for use on both aluminum and copper conductors from #12 sol. Through 2000 kcmil. 4-hole pads inhibit connector rotation and increase area contact. They are designed for heavy duty applications to 35KV. YA-A terminals are prefilled with Penetrox and assembled with color-coded end caps. The aluminum Hylug terminals are designed for a permanent trouble-free electrical termination. Oxide inhibiting compound contains homogeneously suspended metallic particles to penetrate the wires oxides, establish electrical continuity and forms an airtight connection. Color-coded end caps inserted in barrel end. Prevents foreign materials from entering and contaminating the connector prior to usage plus identifies the proper color-coded die for a reliable connection. 1/2 Stud size. Number of holes in pad: 2-NEMA. 1-5/8-inches wire strip length.

UPC: 781810754504

EAN: 0781810754504

Model: YA28A5

Binding: Misc.

Item Condition: New
