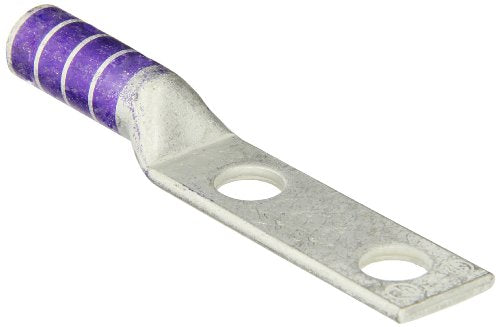

Burndy YA282N Two Hole Hylug Code Conductor Long Barrel Copper Compression Terminal, 4/0 AWG Conductor, 1/2" Stud Hole Size, 1-3/4" Stud Hole Spacing, 1.02" Tongue Width, 5.17" Length, Purple (Pack of 10)

Color: Purple

Features:

• Compression lug for use with a stranded 4/0 AWG copper conductor
• Tin-plated copper for conductivity and resistance to corrosion
• Accommodates 1/2" studs spaced 1-3/4" apart
• Long barrel type allows for multiple crimps and a more secure connection than shorter barrels
• RoHS compliant, UL listed, and CSA certified

PartNumber: YA282N

Details: This Burndy YA282N Hylug two-hole, long-barrel compression terminal is made of tin-plated copper for conductivity and resistance to corrosion, and is suitable for use with a stranded American Wire Gauge (AWG) 4/0 copper conductor. It accommodates 1/2" studs spaced 1-3/4" apart. Its long barrel allows for multiple crimps and a more secure connection than shorter barrels. The lug is Restriction of Hazardous Substances (RoHS) compliant, Underwriters Laboratories (UL) listed, and Canadian Standards Association (CSA) certified. This two-hole, long-barrel compression terminal is suitable for a range of electrical applications when used with a 4/0 AWG stranded copper conductor and an appropriate crimping tool.SpecificationsTongue angleStraightTongue typeStandardBarrel styleChamferedBarrel typeLongConductor type supportedStranded copper, 4/0 AWGColor codePurpleOverall length5.17"Barrel length1.62"Pad width1.02"Thickness0.14"Standards metRoHS compliant, UL listed, CSA certifiedBurndy manufactures cable connection and management products.  The company, founded in 1924, is headquartered in Manchester, NH.

UPC: 781810503652

EAN: 0781810503652

Model: YA282N

Binding: Misc.

Item Condition: New
