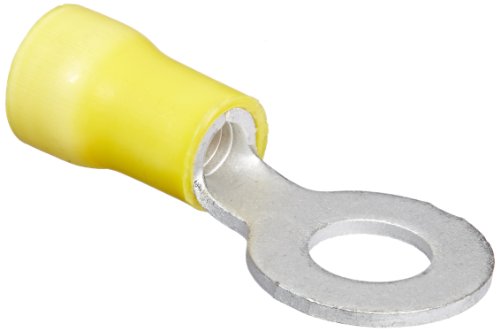

Burndy TP10-14 Vinylug Polyvinylchloride Insulated Ring Tongue Terminal, 12-10 Wire Range, 0.53" Width, 1.22" Length, 12-1/4 Stud Size (Pack of 50),Yellow

Color: Yellow

Features:

• Expanded insulation support accepts standard and large wire diameters
• Lowers inventory requirements, permits greater flexibility and provides insulation support
• Manufactured of pure electrolytic copper
• Provides maximum conductivity, low resistance and ductility for excellent crimp forming properties
• Deep V groove serrations in the inner barrel

PartNumber: TP10-14

Details: Vinylug Type TP is designed for commercial and light duty industrial control and power circuit applications. Supplied with an expanded polyvinyl chloride (PVC) insulation shroud, many tongue variations and rated 600V makes TP terminals versatile and economical. UL listed; CSA certified. Expanded insulation support accepts standard and large wire diameters. Lowers inventory requirements, permits greater flexibility and provides insulation support. Funnel entry. Easy wire insertion. Manufactured of pure electrolytic copper. Provides maximum conductivity, low resistance and ductility for excellent crimp forming properties. Deep V groove serrations in the inner barrel. Provides added holding strength and better conductivity. Electro-tin plated. Provides durable long-lasting corrosion resistance.

UPC: 781810711040

EAN: 0781810711040

Model: TP10-14

Binding: Misc.

Item Condition: New
