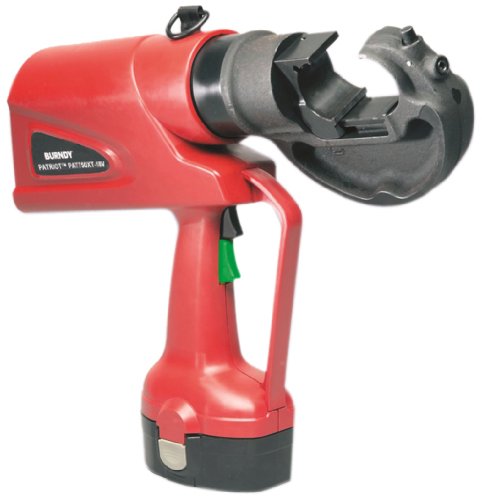

Burndy PAT750XT-18V Patriot High-Performance Battery Actuated Hydraulic Self-Contained Crimping Tool, 12 Ton Crimp Force, 3.5" Width, 15.75" Length, 13.5" Height

Color: Red

Features:

• Battery-actuated hydraulic crimping tool for use with a wide variety of copper and aluminum conductors and connectors
• Provides 12 tons (10.9 metric tons) of crimping force
• Compatible with Burndy "U" die types (not included)
• C-head crimp mechanism with 360-degree head rotation to accommodate asymmetrical connectors and for improved access to tight work spaces
• Audible "pop" indicates properly completed crimps

PartNumber: PAT750XT18V

Release Date: 12-12-2017

Details: Description The Burndy PAT46-18V crimping tool is a battery actuated hydraulic crimper that produces 12 tons (10.9 metric tons) of force and is suitable for crimping a range of copper and aluminum terminals, splices, and taps. It has a C-head crimp mechanism capable of 360-degree head rotation to accommodate asymmetrical connectors and for improved access to tight work spaces, and features an audible "pop" when the crimping cycle is complete. It comes with a high-impact plastic carrying case to hold the tool, a battery charger, two 18V nickel–metal hydride (NiMH) batteries, a retention lanyard, and die sets. This crimping tool is suitable for in-shop or field repairs and installations using aluminum and copper conductors and connectors in a variety of industrial and commercial settings. Specifications Crimper typeBattery actuated/hydraulicOutput force12 tons (10.9 metric tons)Weight16.5 lb. (7.5 kg)Dimensions*15.75 x 13.5 x 3.5 inches/40 x 34.29 x 8.89 cm (L x H x W)Operating voltage18VDCBattery recharge timeLess than 45 minutesFor use with die typeBurndy type "U" (not included)For use with copper tension sleevesSolid #8 AWG to 500 kcmilFor use with aluminum tension sleevesSolid #8 AWG to 587.2 kcmilFor use with ACSR#4 AWG to 556.5 kcmilFor use with copper tapsSolid #14 AWG to 500 kcmilFor use with aluminum taps#8 AWG to 500 kcmilFor use with copper aerial cable#6 AWG to 500 kcmilFor use with aluminum terminals and splices#8 AWG to 750 kcmilFor use with copper terminals and splices#8 AWG to 750 kcmilFor use with ACSR terminals and splices#4 AWG to 556 kcmilFor use with copper ground rod cable for ground rods 1/2" to 1" in diameter#8 AWG to 500 kcmil *L is length, the horizontal distance from front to back; H is height, the vertical distance from bottom to top; W is width, the horizontal distance from one side to the other . Crimpers, also called crimping tools, pinch wire terminals and connectors to wires to prepare them for use in electrical or communications applications. They have nests and indenters that vary in size and shape according to application. Manual crimpers are suitable for portable applications that create small terminal connections while power crimpers use air, electricity, hydraulic power, or a combination of these to aid compression, and are used in high volume applications. Crimpers can be used for applications ranging from manual field repairs to fully automated terminal production operations. Burndy manufactures cable connection and management products. The company, founded in 1924, is headquartered in Manchester, NH. What's in the Box? High-impact plastic carrying case PAT46-18V crimping tool Two 18V NiMH batteries Battery charger Lanyard (2) Safety and operations manuals

UPC: 781810438701

EAN: 0781810438701

Model: PAT750XT-18V

Binding: Misc.

Item Condition: New
