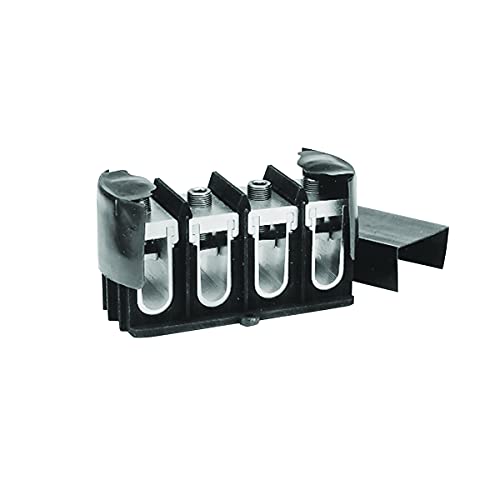

Burndy FT4B500 U-Blok 4 Wire Power Distribution Block, 400-500 Aluminum or Copper Wire Range Run, 6-500 Aluminum or Copper Wire Range Tap, 3-7/8" Width, 7-7/8" Length, 4-1/8" Height, 375 in lb Torque

Features:

• Connector top slides off/on for quick cable lay-in
• Labor savings, easy access for installation, modifications or retrofit
• Electro-tin plated connectors in each pole
• Durability, high-conductivity and resistance to corrosion
• Compact size

PartNumber: FT4B500

Release Date: 12-03-2017

Details: The U-Blok system is a modern, state-of-the-art approach to multi-load power distribution applications. Among typical uses are multi-story or multi-unit buildings, HVAC, refrigeration, control panels, motor control, switch gear, elevator systems and materials- handling equipment. U-Blok is UL listed for copper or aluminum conductors and rated for 600-volt applications. U-Blok can be mounted on bases for use in troughs or bolted directly to junction boxes. AL9CU rated. For junction box applications. Requires less space than traditional connection methods. Trough installations can be mounted on raised platforms. Passage of cables under block means through-cables need not be terminated. Insulating covers and mounting blocks rated 94-VO. Saves costly taping, time and material. Conforms to or exceeds building codes. Connectors accommodate a wide range of wire sizes. Reduces parts inventory requirements. Feeder conductors can be cut or fed through on a continuous run. Ease of installation. Ease of installation. Maximum number of wires per phase: 2. Allen wrench size: 3/8". Strip length: 2-5/16".

UPC: 781810113585

EAN: 0781810113585

Model: FT4B500

Binding: Misc.

Item Condition: New
