BTRF-37C16A SMART TOOL PLUS

Features:

• BTRF-37C16A SMART TOOL PLUS

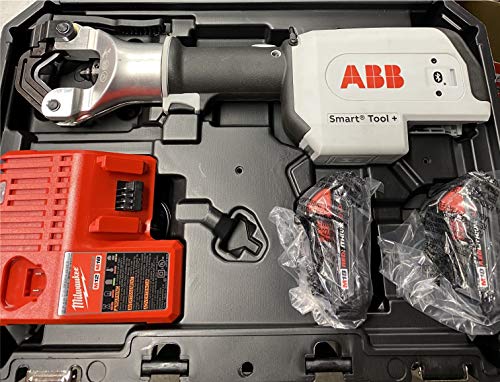

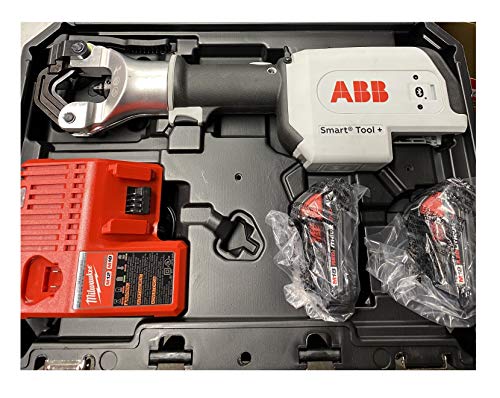

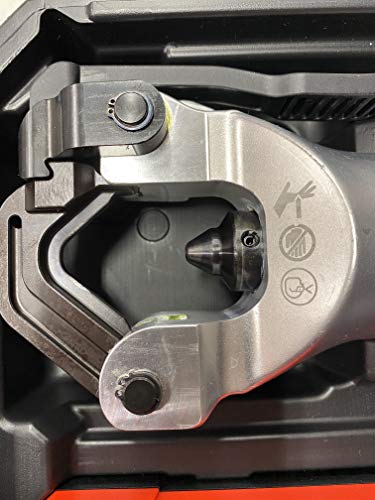

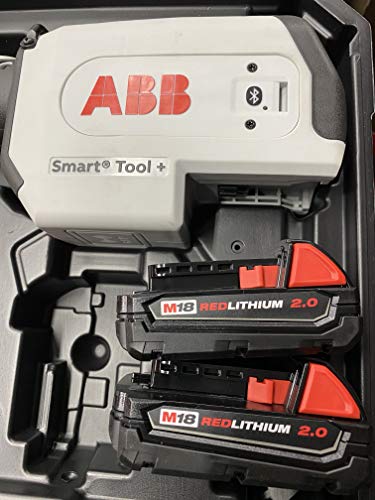

Details: ABB / THOMAS & BETTS SMART TOOL PLUS 6.5 Ton Dieless Lithium-Ion Battery Powered Inline Closed Crimp Tool for Crimping 3/0-750 kcmil Cu, 1/0-600 kcmil Al Connectors, Dieless Crimp Tool part number: BTRF-37C16A Features and Benefits: Smart dieless 6.5 ton crimping System Lightweight balanced inline design UL 486 compliant with a single compression when used with T&B Color Keyed Connectors Note: Aluminum lugs with copper conductor require 2 compressions 3/0 - 750 CU and 1/0 to 600 AL range Closed head design, unlocks for increased accessibility 180 degree rotatable head Automatic work light Ram release mechanism LED display with integrated controls Integrated RFID reader for scanning Smart lugs Backward compatible with standard lugs Bluetooth Enabled for data transfer Mobile App for data upload and download Cloud account with data management dashboard Pre-crimp battery check to ensure sufficient battery charge to complete crimp Milwaukee M18 battery system High speed hydraulic pump for fast action Sturdy case to hold tool, battery charger, and two batteries — When used with T&B Color-Keyed connectors, the crimped connection conforms to: UL 486A-486B CSA C22.2 No.65 — Applications: Critical Power Data Centers OEM Switch Gear and Power Critical Equipment Critical Asset installations — Connector material: High conductivity ETP copper, tin plated High conductivity wrought aluminum, tin plated Max working temperature 90°C Smart Tool+ helps deliver a perfect crimp every time by automatically measuring the inserted connector and applying the ideal compression depth and force, giving you the precision of a die without the complications. An in-tool indicator confirms a secure crimp, and that data is stored and uploaded to a cloud database via Bluetooth technology.

UPC: 786210184357

EAN: 0786210184357

Binding: Misc.

Item Condition: New
